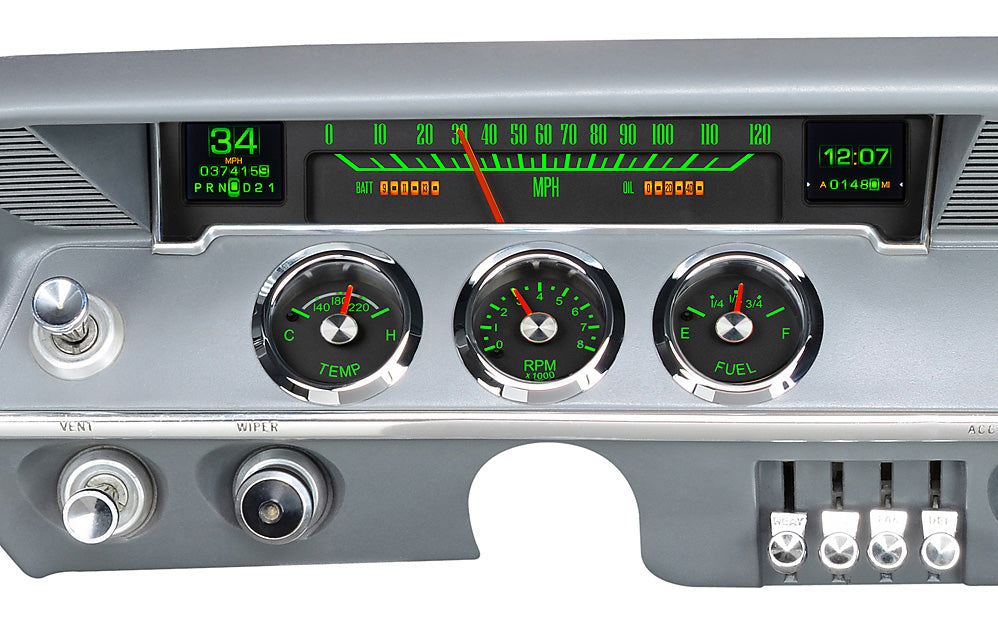

Dakota Digital Gauges, 1961-1962 Impala/El Camino Dakota Digital RTX
Dakota Digital Gauges, 1961-1962 Impala/El Camino Dakota Digital RTX
SKU:RTX-61C-IMP-X
Regular price
$1,562.75 USD
Regular price
Sale price
$1,562.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Embrace the shapes in your 1961-62 Chevy dashboard and drop this multi-function, multi-color beauty in place! New aluminum chrome bezels are supplied for the round gauges, while your stock stamped trim for the speedometer is reused. From three-wheeling down Whittier Blvd. to power shifting a 409/425, Customize the color combo through a smartphone app.
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
| Analog Gauges |
| Speedometer |
| Â?0 -120 MPH (optional metric version 0- 200 kmh) |
| Oil Pressure |
| Â?0- 80 psi |
| Water Temperature |
| Â?100- 260Â?F (optional metric version 40- 120Â?C) |
| Fuel Level |
| Â?E, 1/4, 1/2 3/4, F |
| Voltmeter |
| Â?9- 17 VDC |
| Digital Bar Graph Gauges |
| Tachometer |
| Â?0- 8,000 RPM |
| Digital Message Centers |
| Standard Displays |
| Â?Odometer (One time user settable, Million Mile) |
| Â?Dual (A/B) Trip Meter (0- 9,999.9) |
| Â?Clock (12 hour) |
| Â?Estimated Range/ Miles to Empty |
| Performance Meters |
| Â?0- 60 MPH Timer (0- 100 kmh) |
| Â?1/4 and 1/8 mile time |
| Â?1/4 and 1/8 mile end speed (trap speed) |
| Â?High speed recall |
| Â?High RPM recall |
| Built-in Indicators |
| Indicators |
| Â?Turn Signals (Left/ Right) |
| Â?High Beam |
| Â?Check Engine |
| Â?Parking Brake |
| Â?Cruise Control (On/ On & Engaged when vehicle is equipped) |
| Â?Gear Position (Optional GSS-2000 sensor required) |
| Â?4 x 4 (When vehicle is equipped) |
| Â?Wait to Start (When vehicle is equipped) |
| Â?Two Auxiliary input indicators with user-programmable labels |
| Â?Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer) |
**Not all OEM indicator lamp functions will be replaced.
|
Lighting Technology |
| Colors |
| Â?Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color. |
| Brightness |
| Â?Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality. |
| Themes |
| Â?With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. |
| Technology |
| Â?Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice. |
